What Causes CP4 Fuel Pump Failure â And How to Prevent It
CP4 fuel pump failure happens because the pump was engineered for European diesel, which lubricates its internals far better than the ultra-low sulfur diesel sold in the U.S. Without enough lubrication, the CP4's internal components wear down and shed metal into the fuel system â a failure that typically costs $8,000 to $15,000 to repair. Quality fuel, on-time filter changes, and a lubricity additive prevent most cases.
Quick answer: CP4 fuel pump failure is mainly a fuel lubrication and contamination problem, not random bad luck. The warning signs are rough idle, hard starts, low rail pressure codes, and metal in the filter. The best prevention is quality fuel, on-time filter changes, and a lubricity additive. If metal shows up in the filter, stop driving and inspect the fuel system immediately.
The repair estimate lands somewhere between $8,000 and $15,000. The truck gets towed in running fine, and it leaves with a completely contaminated fuel system. That is what happens when a CP4 high-pressure fuel pump fails catastrophically, and it has happened to tens of thousands of diesel truck owners across every major platform.
This is not a fringe issue. It is documented in federal courtrooms. GM settled a $50 million class action in May 2025 covering 2011-2016 Duramax trucks. Ford issued NHTSA Recall 24V-957 in December 2024 affecting 295,449 Super Duty trucks. Ram issued its own recall in 2022 and replaced CP4 units with the more robust CP3.3 pump.
| Quick Action | Why It Matters |
|---|---|
| Change fuel filters on schedule | Reduces contamination risk |
| Add lubricity at every fill-up | Lowers pump wear |
| Keep the tank above a quarter full | Helps cooling and lubrication |
| Inspect for metal at every service | Catches failure early |
WHY THE CP4 PUMP FAILS IN AMERICAN TRUCKS
The Bosch CP4 (technically the CP4.1 or CP4.2) is a high-pressure common-rail fuel injection pump engineered in Europe for European diesel fuel, which carries significantly higher lubricity than the ultra-low sulfur diesel (ULSD) mandated in the United States since 2006. That mismatch is the root cause of every CP4 failure in American trucks.
European diesel naturally lubricates the CP4's internal steel-on-steel components. American ULSD has the sulfur removed to meet EPA emissions standards, and sulfur removal strips away much of the fuel's natural lubricating properties. With ULSD, the CP4's precision-machined plungers and rollers run with insufficient lubrication from day one â and as they degrade, they shed microscopic metal particles directly into a fuel stream running at 20,000 to 30,000 PSI. Once metal is in that circuit, it travels at high velocity through the entire injection system, which is why the pump itself is rarely the expensive part. The contamination it sends downstream is.
Which Trucks Have the CP4 Fuel Pump?
The CP4 pump was adopted across three major diesel pickup platforms in the U.S. If you own a diesel truck built after 2010, there is a reasonable chance it has one.
| Platform | Engine | Model Years With CP4 | Legal / Recall Action |
|---|---|---|---|
| GM Silverado / Sierra HD | 6.6L Duramax LML | 2011-2016 | $50M class action settled May 2025 |
| Ford F-250 / F-350 Super Duty | 6.7L Power Stroke | 2011-present | NHTSA Recall 24V-957 (Dec 2024); class action ongoing |
| Ram 1500 / Jeep Grand Cherokee | 3.0L EcoDiesel | 2014-2019 | Recall 21V880 (2022); CP4 replaced with CP3.3 |
GM: the $50 million settlement (Chapman v. General Motors LLC) only covered trucks purchased in seven states â California, Florida, Illinois, Iowa, New York, Pennsylvania, and Texas. Owners in the other 43 states received no compensation, and all claim deadlines have now passed.
Ford: Recall 24V-957 covered 295,449 trucks from the 2020-2022 model years. The remedy was a PCM software update, not a pump replacement. A separate class action (Keith T. Williams et al. v. Ford Motor Company) remains ongoing as of mid-2026.
Ram / EcoDiesel: Ram's 2022 recall took the most decisive action, replacing the CP4 outright with the CP3.3 â a pump far more tolerant of ULSD's reduced lubricity.
What Are the Warning Signs of CP4 Failure?
The CP4 rarely fails with a single dramatic event â it degrades. Catching it early is the difference between a $500 repair and a $12,000 one.
Performance-Related
- Rough idle or engine stumble at low RPM, especially when cold
- Hesitation or lack of power during acceleration, particularly under load
- Increased fuel consumption without a change in driving habits
- Hard starting or extended cranking before the engine fires
Fuel System-Related
- Metal shavings or debris in the fuel filter when changing it (a late-stage sign)
- An unusual whine or ticking noise from the fuel system that wasn't there before
- Low rail pressure fault codes â P0087, P0191, and related codes are common
- Visible fuel leaks or weeping around injection lines
Dashboard Warnings
- Check engine light with fuel pressure-related diagnostic codes
- Reduced engine power mode (limp mode) activation
- DEF/emissions fault codes appearing alongside fuel system codes, which can indicate downstream contamination
If you see low fuel rail pressure codes or find metallic debris in a fuel filter change, stop driving the truck and have the fuel system inspected before starting it again.
How Do You Prevent CP4 Fuel Pump Failure?
The CP4's design flaw can't be engineered away by the owner. What can be controlled is the environment it operates in: fuel quality, filtration, and lubricity. Get all three right and you dramatically reduce the risk.
Fuel Quality: Where You Fill Up Matters
- Use name-brand stations when possible. Tier 1 fuel suppliers are required to meet additive packages that include lubricity improvers. Off-brand stations may sell fuel that technically meets ASTM D975 but sits at the low end of the lubricity range.
- Avoid biodiesel blends above B5 in older trucks. Ford's investigation into the 2020-2022 Power Stroke failures specifically cited aged biodiesel deposits as a contributing factor to accelerated CP4 wear.
- Never let the tank run below a quarter tank. Low fuel levels reduce the cooling and lubricating effect of fuel circulating through the pump â especially in hot weather and when towing.
Fuel Filtration: The First Line of Defense
The fuel filter is the only barrier between contaminants in your fuel supply and the CP4's precision components. A clogged or overdue filter reduces fuel flow and pressure, forcing the pump to work harder under reduced lubrication. The standard recommendation for most diesel platforms is to change the fuel filter every 15,000 miles â towing, dusty conditions, or lower-quality fuel should push that interval shorter, not longer. See the Doc's Diesel guide on filter change intervals for platform-specific recommendations.
What to look for when you pull the old filter: any metallic sheen or debris in the housing is a red flag, dark sludgy residue can indicate microbial contamination, and water in the separator bowl means your fuel source has a moisture problem. Doc's Diesel carries OEM-fit fuel filters for LML Duramax, 6.7L Power Stroke, and 3.0L EcoDiesel platforms, built to meet or exceed OEM filtration specs.
LUBRICITY ADDITIVES: COMPENSATING FOR ULSD'S WEAKNESS
Since American ULSD lacks sufficient lubricity for the CP4, adding lubricity back to the fuel is a direct countermeasure. Look for additives that specifically list lubricity improvement on the label, with a focus on HFRR (High-Frequency Reciprocating Rig) wear scar reduction â the lower the number, the better the lubrication. ASTM D975 requires a maximum wear scar of 520 microns; quality lubricity additives can bring that down to 350-400 microns or lower.
Practical note: a lubricity additive is a supplement to proper filtration and fuel quality, not a substitute. An owner who uses a good additive but skips fuel filter changes is still running contaminated fuel through a stressed pump.
Maintenance Kits: Doing It All at Once
The most common reason diesel owners fall behind on fuel filter changes is friction â sourcing the right filter, finding time, remembering when it was last done. An all-in-one maintenance kit removes that friction: when the fuel filter, oil filter, air filter, and cabin filter all arrive together, the service gets done completely rather than partially. See the full maintenance kit install walkthrough if you're doing it yourself.
The CP4 Prevention Checklist
- Change your fuel filter every 15,000 miles (sooner if towing heavily or running in dusty conditions)
- Inspect the filter housing for metal debris every time you change it â any metallic sheen means stop and inspect
- Use a diesel fuel additive with documented lubricity improvement at every fill-up
- Fill up at Tier 1 branded stations whenever possible
- Keep the tank above a quarter full, especially in summer heat and when towing
- Do not ignore fuel pressure codes â P0087 and P0191 are not minor
- Know your platform's recall status (Ford 24V-957, Ram 21V880)
- Document your maintenance â records matter for any warranty or legal claim
The cost of this entire prevention protocol comes in under $100 per year for most owners. Ignoring it can exceed $15,000.
Should You Replace the CP4 Proactively?
It depends on mileage, use case, and risk tolerance. Some high-mileage owners, particularly those who tow regularly or haven't kept strict fuel filter intervals, replace the CP4 with a CP3-based conversion kit before failure occurs â the CP3 is the older-generation Bosch pump that's far more tolerant of ULSD. Conversion kits typically run $1,500 to $3,000 installed, a fraction of a full contamination repair, but often require recalibrating or deleting emissions tuning, which carries legal and warranty considerations depending on your state.
If your truck is under 100,000 miles, running quality fuel, a lubricity additive, and a fuel filter on schedule, the statistical risk of sudden catastrophic failure is meaningfully lower â the CP4 can last the life of the truck for owners who take fuel system maintenance seriously.
| Scenario | Recommended Action |
|---|---|
| Under 100K miles, consistent maintenance | Prevention protocol (filtration, lubricity, fuel quality) |
| 100K-150K miles, unknown maintenance history | Inspection, fuel filter audit, start prevention protocol |
| Over 150K miles, heavy towing use | Seriously consider CP3 conversion; consult a diesel specialist |
| Any truck showing symptoms | Stop driving; full fuel system inspection immediately |
Shop Fuel Filters by Platform
OEM-fit fuel filters for the three CP4-affected platforms. Add straight to cart below, or use the vehicle selector for your exact year.
6.6L Duramax LML Fuel/Water Separator
Fits 2011-2016 LML | $33.99
Direct OEM-fit fuel/water separator for 6.6L Duramax LML trucks — the exact platform named in GM's $50M CP4 settlement.
What's Included
- 1x fuel/water separator filter â direct OEM-fit replacement
- Removes dirt, rust, debris â protects the CP4 pump from contamination
Fits 2011-2016 Chevrolet Silverado / GMC Sierra 2500HD/3500HD 6.6L Duramax LML
30-Day Money-Back Guarantee
6.7L Power Stroke Fuel Filter Set
Fits 2017-2026 | $59.99
Direct OEM-fit fuel filter set for Ford 6.7L Power Stroke Super Duty trucks — the platform covered by NHTSA Recall 24V-957.
What's Included
- 1x fuel filter set â direct OEM-fit replacement
- Removes dirt, rust, debris â protects the CP4 pump from contamination
Fits 2017-2026 Ford F-250/F-350/F-450 6.7L Power Stroke
30-Day Money-Back Guarantee

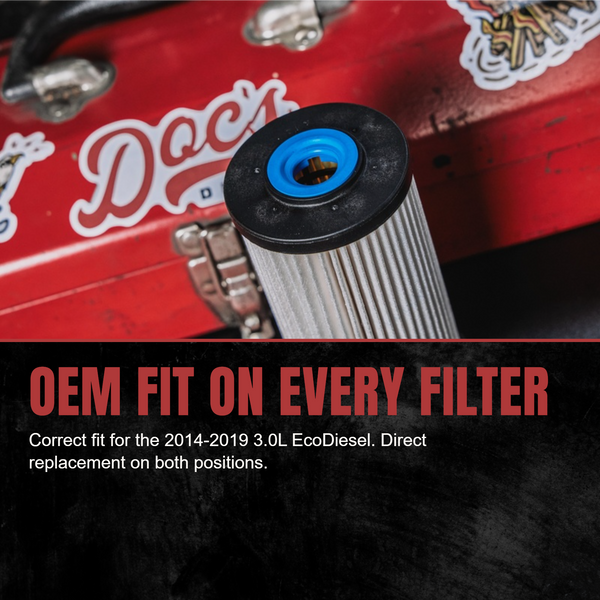

3.0L EcoDiesel Fuel Filter
Fits 2014-2019 | $27.99
Direct OEM-fit fuel filter for 3.0L EcoDiesel trucks — the exact model years covered by Ram's 21V880 recall and CP3.3 replacement.
What's Included
- 1x fuel filter â direct OEM-fit replacement
- Removes dirt, rust, debris â protects the CP4 pump from contamination
Fits 2014-2019 RAM 1500 3.0L EcoDiesel and Jeep Grand Cherokee 3.0L EcoDiesel
30-Day Money-Back Guarantee
Frequently Asked Questions
The CP4 was engineered for European diesel, which lubricates its internal steel-on-steel components far better than the ultra-low sulfur diesel (ULSD) sold in the U.S. With insufficient lubrication, the pump's plungers and rollers wear and shed metal directly into the 20,000-30,000 PSI fuel stream, contaminating injectors, rails, and lines downstream.
A full contamination repair typically runs $8,000 to $15,000, covering the pump itself ($1,500-$3,000), all fuel injectors ($3,000-$6,000), fuel rails and lines ($500-$1,500), a fuel tank flush ($500-$1,000), and 8-20+ hours of labor. The pump is rarely the expensive part — the metal contamination it sends through the system is.
GM Silverado/Sierra HD with the 6.6L Duramax LML (2011-2016), Ford F-250/F-350 Super Duty with the 6.7L Power Stroke (2011-present), and Ram 1500/Jeep Grand Cherokee with the 3.0L EcoDiesel (2014-2019). It also appears in some 2011-2016 Chevrolet Colorado/GMC Canyon diesel variants.
Rough idle, hesitation under load, hard starting, low rail pressure codes (P0087, P0191), an unusual whine from the fuel system, and metal shavings in the fuel filter. If you see any of these, stop driving and have the fuel system inspected — continuing to drive circulates more contamination with every mile.
It depends on mileage and use. Trucks over 150,000 miles with heavy towing or deferred maintenance are the strongest candidates for a proactive CP3 conversion ($1,500-$3,000 installed). Trucks under 100,000 miles with consistent fuel filter changes, quality fuel, and a lubricity additive generally do fine staying on the CP4.
Ford issued NHTSA Recall 24V-957 in December 2024 for 295,449 Super Duty trucks (2020-2022 model years) — check your VIN with Ford or NHTSA. Ram issued Recall 21V880 in 2022, replacing CP4 units with the CP3.3. GM's $50M class action settlement (Chapman v. General Motors) covered only seven states and all claim deadlines have passed.
